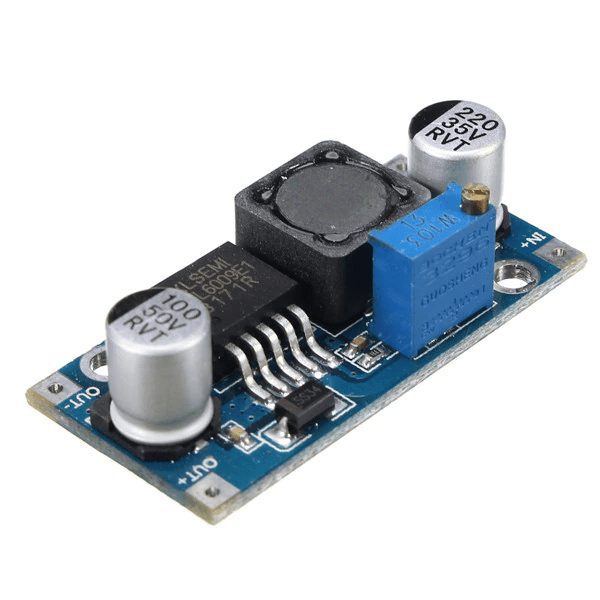

XL6009 DC-DC Step-Up Power Converter Module 4A
This DC-DC switching boost converter is capable of driving a 4A load with excellent line and load regulation. The main switching component XL6009 IC is available in fixed output voltages of 3.3 V, 5V, 12V, and an adjustable output version. It is an efficient switching regulator and the output efficiency is significantly higher in comparison with the popular boost regulators. At higher input voltages, the regulator operates at a switching frequency of 400kHz thus allowing the overall board size to be smaller and space-saving.
The XL6009 module is a DC to DC BUCK-BOOST converter module that operates at a switching frequency of 400kHz. In such high frequency, it provides smaller-sized filter components compared with low-frequency switching regulators. It is the upgraded version of the LM2577-based module.

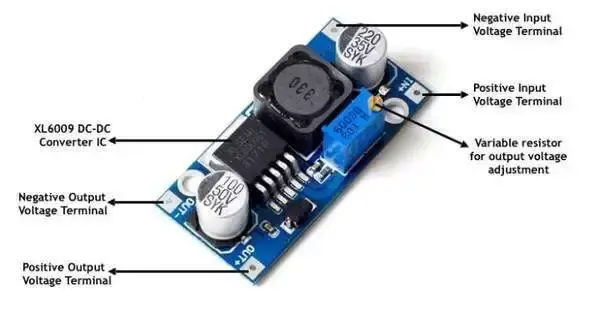

Pin Description of XL6009 Power Module Board
| Pin Name | Description |
|---|---|
| IN+ | Positive input (Unregulated or Regulated) |
| IN- | Negative input (Ground) |
| OUT+ | Positive Output (Regulated) |
| OUT- | Negative Output (Ground) |
